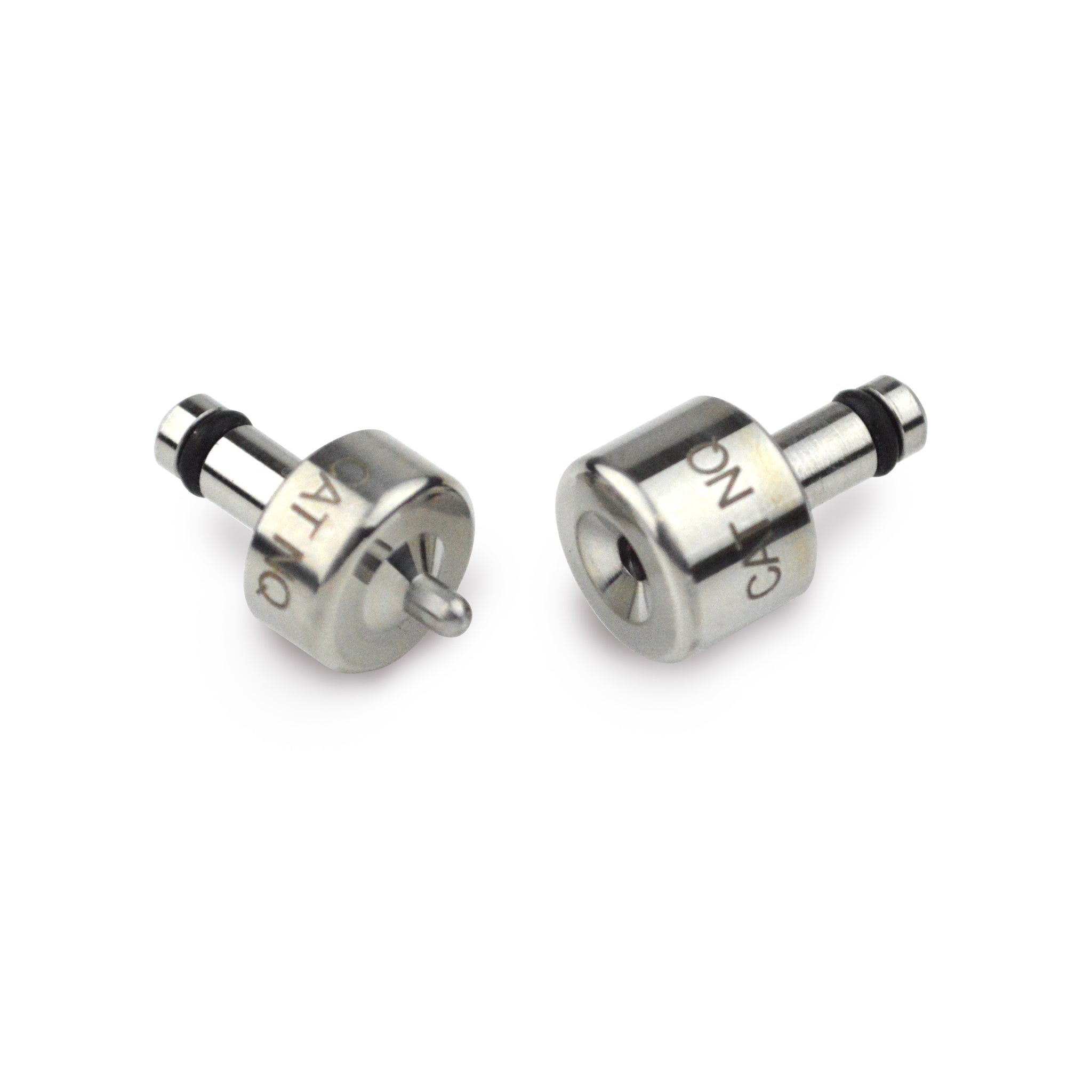

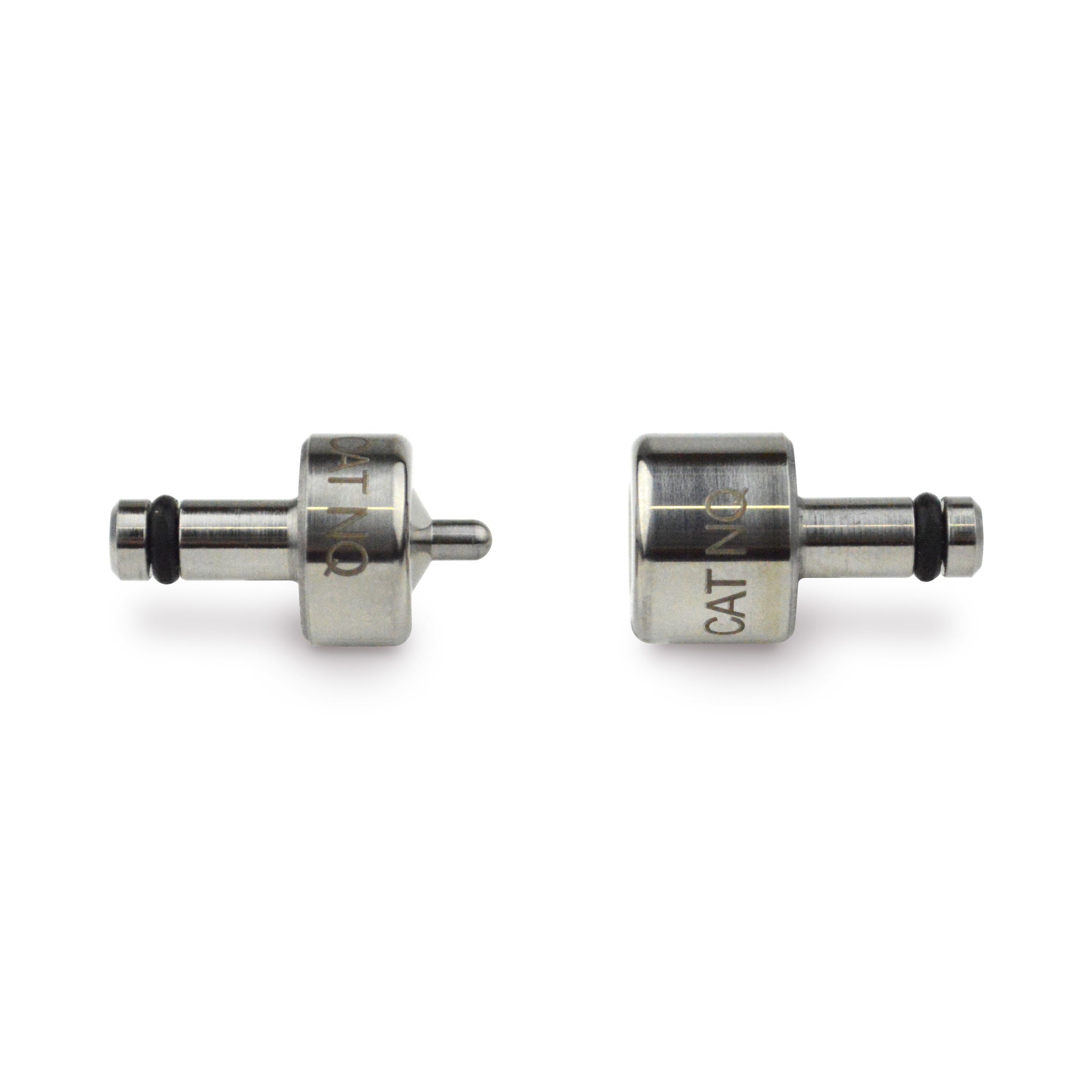

Dimple Die Set For 1/8" Avdel N Or Q

Dimple Die Set For 1/8" Avdel N Or Q (SKU: DIENQ)

$50.00

Product Description

Designed for use with the Cherry N or Avdel Q pull rivets which are slightly larger than a standard CS4 pull rivet. These are used in the Sonex and Panther kits.
Please note: these are NOT compatible with the metric dies used for Sling Aircraft (I'm working on it!)
120deg. rivet funnel.
#40 Pilot allows use of 3/32 clekos in drilled hole, dimple, then ream to #30 for perfect fit.
Springback angle on both die faces. (read more about springback here)
Minimizes skin deformation.
Skins remain very flat!
Precision manufactured on CNC machines.
Stainless Steel - Heat treated.
Polished dimpling surfaces.
Don't make 14,000 mistakes on your airplane.
We guarantee these dies work better than any others or we will give you a refund!
